Product Description
| model | DZ-300 |
| ultimate vacuum | 0.05hpa |
| vacuum chamber depth | 50mm |
| power supply | 220V/50HZ 110V/60HZ |
| pump capacity | 10m3/h |
| machine size | 525*400*380mm |
| motor powerheat sealing power | 0.18kw |
| sealing length | 300mm |
| shipment dimension | 615*415*450mm |
| Heat sealing power | 0.15kw |
| sealing width | 5mm |
| N.W./G.W | 40kg/49kg |
| Machine cycle | 20-40 sec |

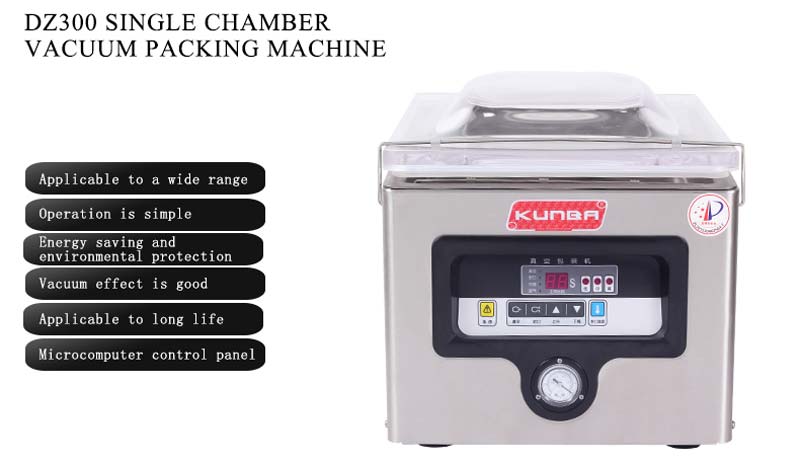

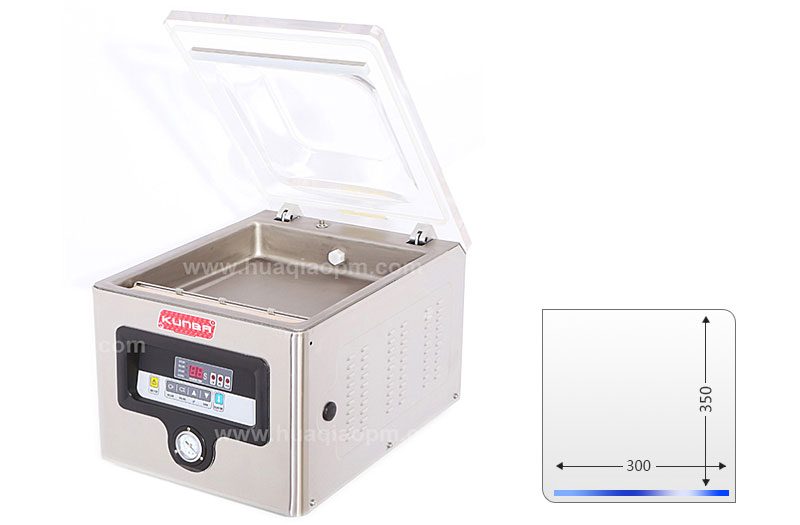

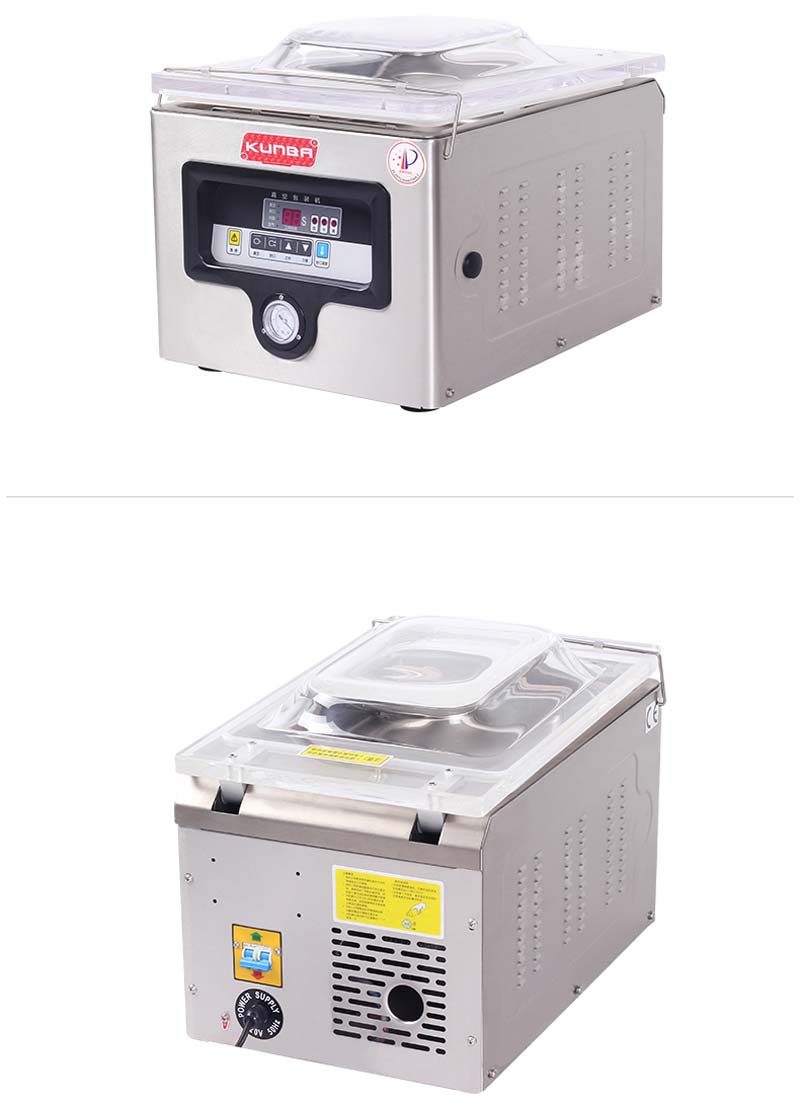

KUNBA DZ-300 series single chamber vacuum packing machine
 |
Control panel Multi-language User-friendly Durable electric units OEM customizable |
 |

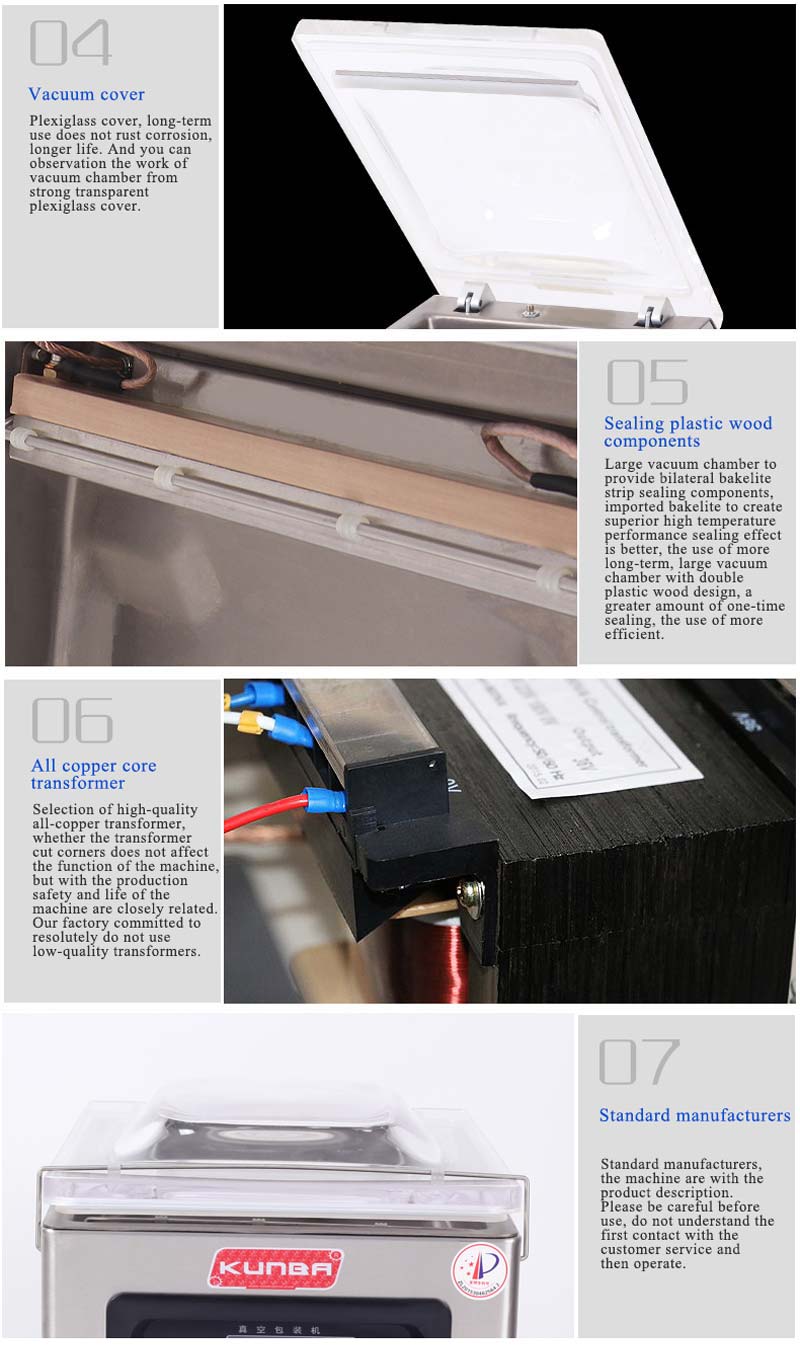

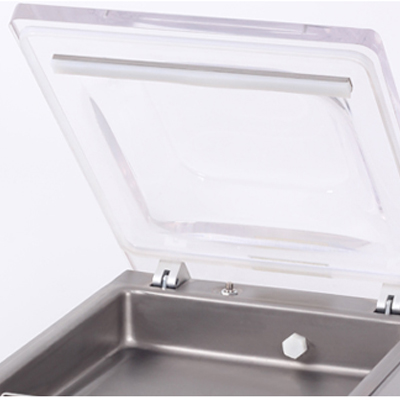

Plexiglass lid Hings absorb shocks Long life Easy for clean |
 |

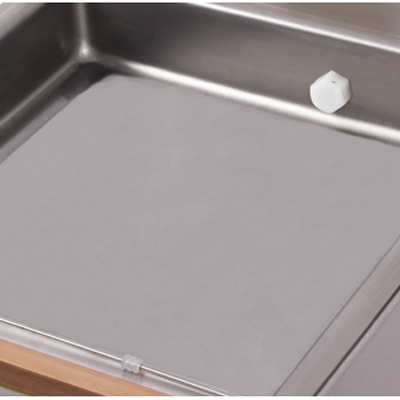

Vacuum chamber 3mm thickness 304 stainless steel Formed by mould Easy for clean |

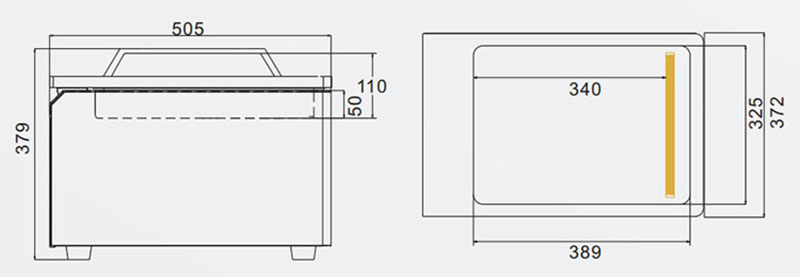

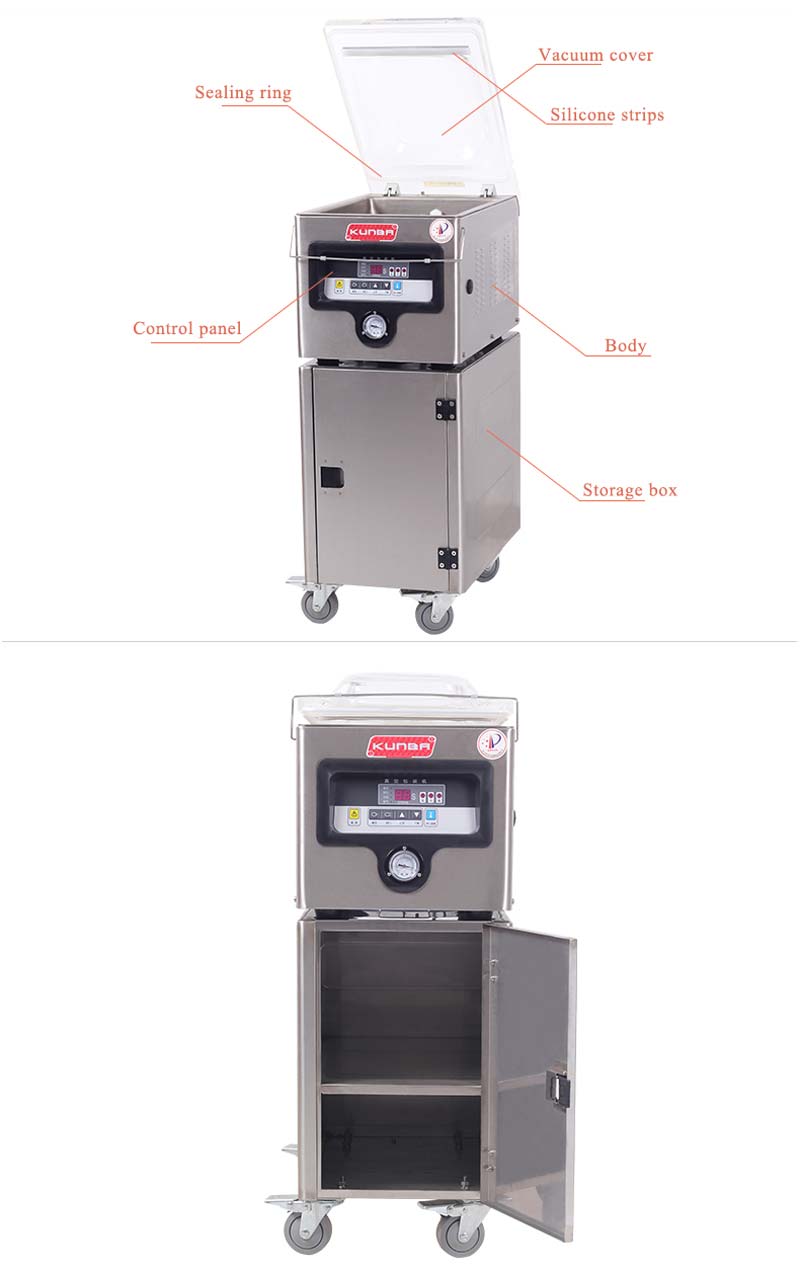

Product structure diagram

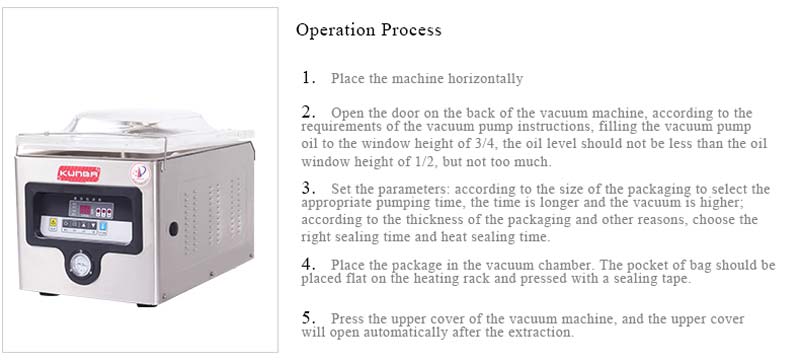

Product Operating Procedure
Vacuum Effect
Parameter Comparison
 |
 |
||
| model | DZ-300 | model | DZ-260 |
| ultimate vacuum | 0.05hpa | ultimate vacuum | 0.05hpa |
| vacuum chamber depth | 50mm | vacuum chamber depth | 50mm |
| power supply | 220V/50HZ 110V/60HZ | power supply | 220v/50hz |
| pump capacity | 10m3/h | pump capacity | 10m3/h |
| machine size | 525*400*380mm | machine size | 502x330x380mm |
| motor powerheat sealing power | 0.18kw | motor powerheat sealing power | 0.18kw |
| sealing length | 300mm | sealing length | 260mm |
| shipment dimension | 615*415*450mm | shipment dimension | 590x405x450mm |
| Heat sealing power | 0.15kw | Heat sealing power | 0.15kw |
| sealing width | 5mm | sealing width | 5mm |
| N.W./G.W | 40kg/49kg | N.W./G.W | 37.2kg/46kg |
| Machine cycle | 20-40 sec | Machine cycle | 20-40 sec |
